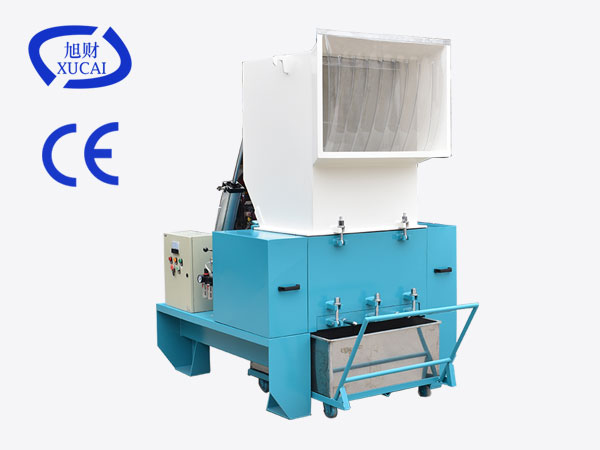

Home > Strong plastic shredder

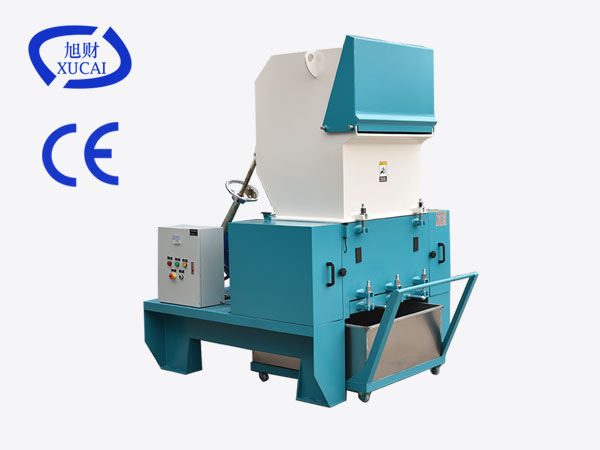

Plastic shredder characteristics:
1.The strong plastic shredder has wide application and used for shredding different kinds of plastic materials,different shape plastic product.
2.Mature manufacture techniques,integrating manufacture inbox body,knife shelves and other important parts to ensure a perfect match.
3.Good designing structure,convenient operation,energy-saving and durable,high efficient and economical.

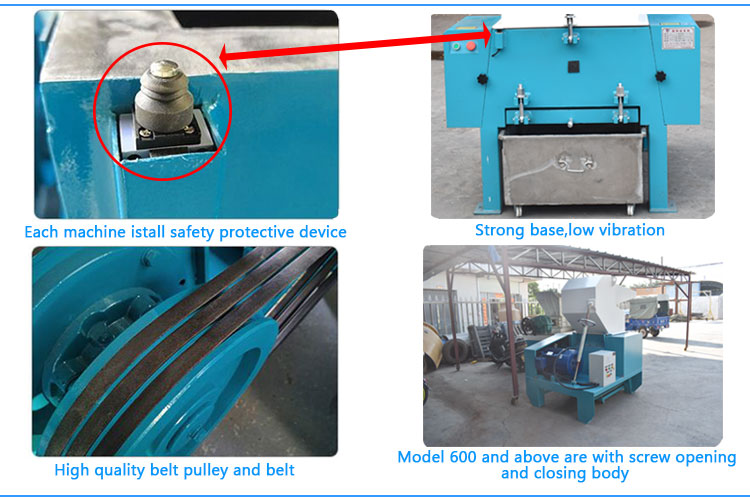

4.Several security protection devices to ensure safe operation.
5.Input sieve with double-deck soundproof design to mitigate noise.
6.Machines in this series are stable,low noise,powder-pollution-free during the operation.The granules are evently produced and in good performance.No overheating during operation and long use life.

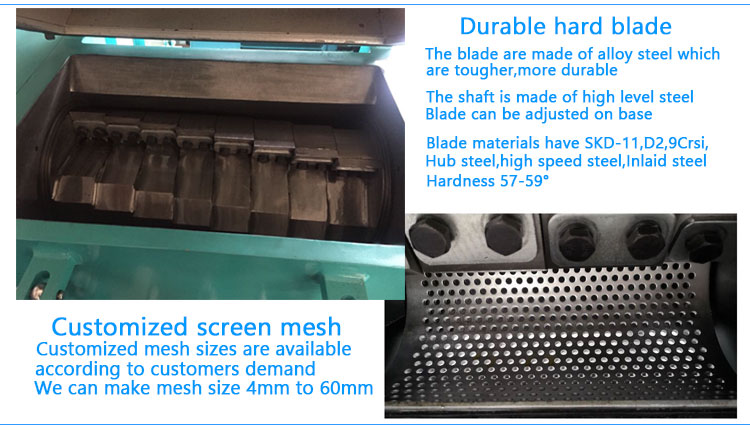

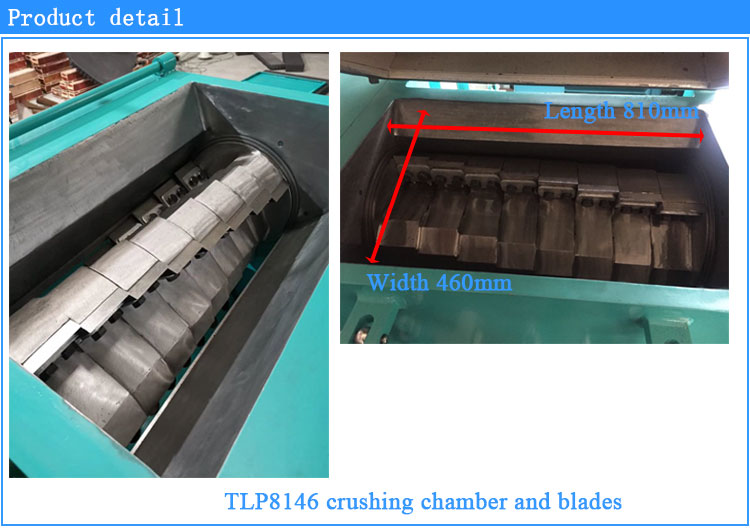

7.The plastic shredder adopt sealed bearings to ensure the long-term perfect operation of bearig.The cutter shape is reasonalbe to render the products into even granules.The cutter frame is processed via heat treatment and strong.

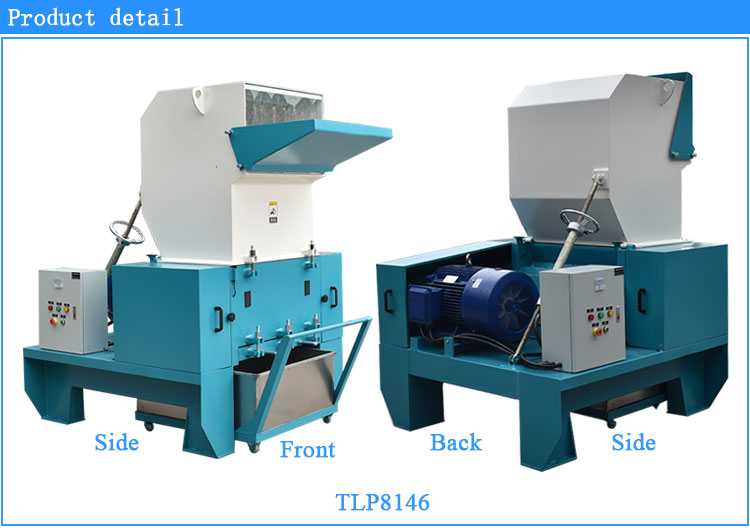

- Product Detail
- Inquiry

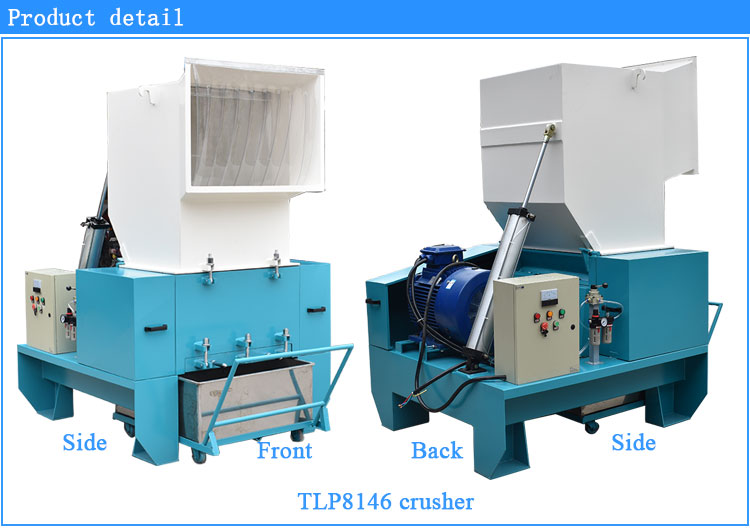

Technical parameters: Model Crushing chamber size(mm) Crushing Capacity (kg/h) Power (kw) Fixing Cutter (pcs) Flexible Cutter (pcs) Mechanical Dimension(mm) Weight (kg) TLP2520 250x200 30-50 4 2 15 1020x670x1090 180 TLP3126 310x240 50-80 5.5 2 9 1150x720x1220 250 TLP4132 410x320 100-200 7.5 2 12 1200x860x1350 450 TLP5132 510x320 150-400 11 2 15 1275x990x1530 570 TLP6033 600x330 200-500 15 2 18 1420x1130x1670 630 TLP6246 620x460 250-600 22 2 18 1630x1240x1910 950 TLP7246 720x460 300-500 22 2 21 1900x1350x2100 1100 TLP8146 810x460 350-700 30 4 24 2000x1500x2100 1500 TLP8150 810x500 350-800 30 4 24 1810x1450x2100 1600 TLP8256 820x560 350-900 37 4 24 2000x1500x2250 1800 TLP9256 920x560 400-900 37 4 27 1900x1580x2250 2200 TLP1056 1020x560 400-950 45 4 30 2010x1750x2590 2500 TLP1065 1020x650 450-1000 45 4 30/12 1960x1750x2660 2600 TLP1083 1030x830 600-1200 55 4 15 2900x2120x3450 3700
