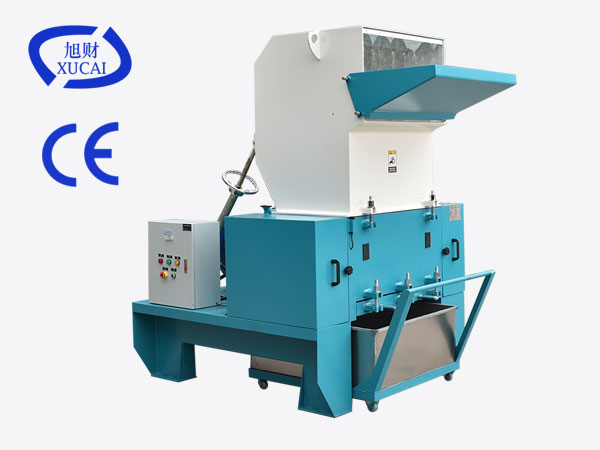

Home > Plastic bottle shredder
1.This crusher can use crushing any types plastic products,rubber tire scrap,big chemical barrel,sponge,textile and so on.

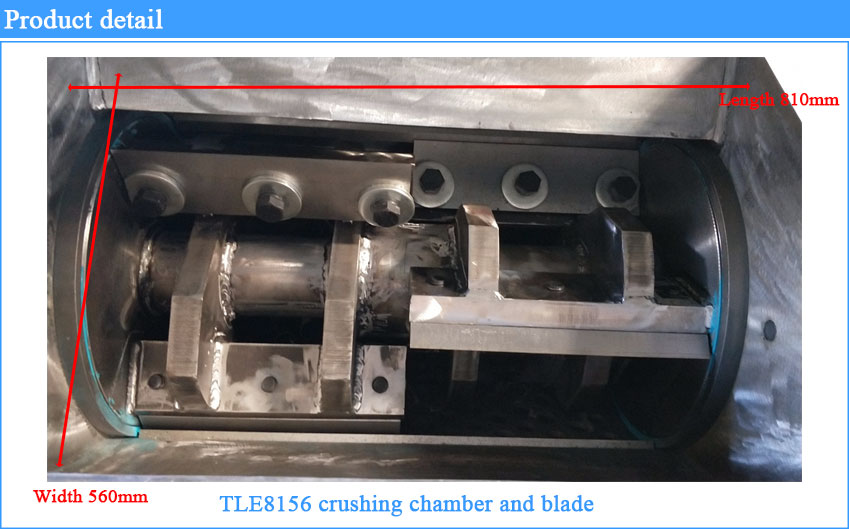

2.Special blade frame design,big crushing chamber space,easy to crushing materials,high capacity.
3.Full copper wire motor,smooth running,no shake,low noise,saving energy,overload and overheat protective.
4.Adopt heavy duty sealed bearing.Smooth running long time,no vibration,low noise.
5.Use high qualit SKD-11 materials blade,durable,easy to crushing hard materials,save energy.It can remove griding reuse when no sharp.
6.Double layer crushing chamber wall and hopper wall,durable,soundproof.
7.Easy to change sieve screen,the sieve hole size can be choose 4-60mm.
8.It can be do with water cooler system if you need.
- Product Detail
- Inquiry
|
Model |
Diameter of Crushing Chamber(mm) |
Crushing capacity (kg/h) |
Motor Power (kw) |
Fixing Cutter (pcs) |
Flexible Cutter (pcs) |
Mechanical Dimension (mm) |
Weight (kg) |
|
TLE2520 |
250x200 |
40-60 |
2 |
2 |
3 |
1020x670x1090 |
170 |
|
TLE3126 |
310x240 |
50-80 |
5.5 |
2 |
3 |
1150x720x1220 |
235 |
|
TLE4132 |
410x320 |
70-150 |
7.5 |
2 |
6 |
1080x860x1370 |
430 |
|
TLE5132 |
510x320 |
100-200 |
11 |
2 |
6 |
1200x990x1550 |
550 |
|
TLE6033 |
600x330 |
150-250 |
15 |
2 |
6 |
1290x1130x1670 |
650 |
|
TLE6246 |
620x460 |
200-500 |
22 |
2 |
6 |
1600x1240x1970 |
900 |
|
TLE7246 |
720x460 |
250-600 |
22 |
2 |
6 |
1600x1340x1970 |
1100 |
|
TLE8146 |
810x460 |
300-700 |
30 |
4 |
6/9 |
1650x1450x2080 |
1600 |
|
TLE8150 |
810x500 |
300-800 |
30 |
4 |
9 |
1650x1450x2080 |
1600 |
|

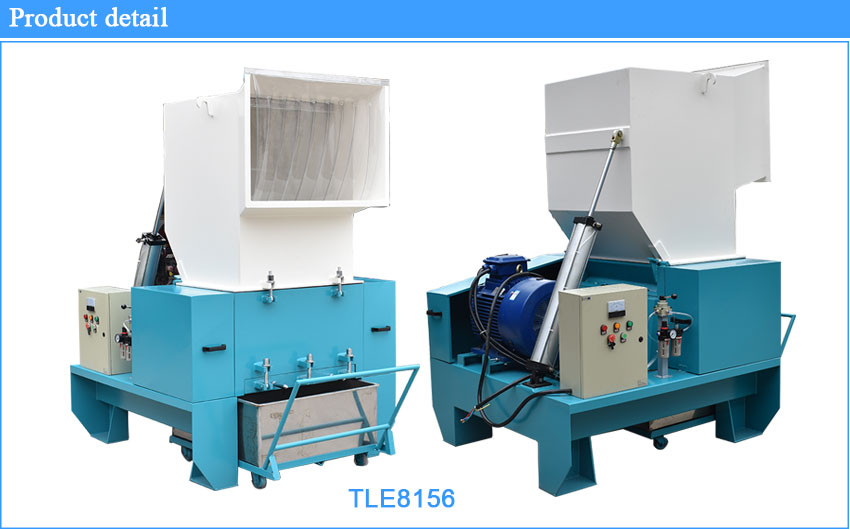

TLE8156 |
810x560 |
300-900 |
37 |
4 |
6/9 |
2000x1500x2250 |
1900 |
|
TLE8256 |
820x560 |
300-900 |
37 |
4 |
9 |
1800x1480x2330 |
1900 |
|
TLE1065 |
1020x650 |
350-1000 |
45 |
4 |
12 |
1960x1750x2660 |
2300 |
|
TLE1083 |
1030x830 |
600-1200 |
55 |
4 |
15 |
2900x2120x3420 |
3700 |
|
TLE1283 |
1230x830 |
650-1300 |
75 |
4 |
9/18 |
3010x2320x3700 |
4500 |
|
TLE1510 |
1530x1000 |
1000-2000 |
75 |
6/10 |
9/15 |
3010x2550x3700 |
6000 |
We can according to client request different Saving energy plastic crusher recycling PET bottle shredder
