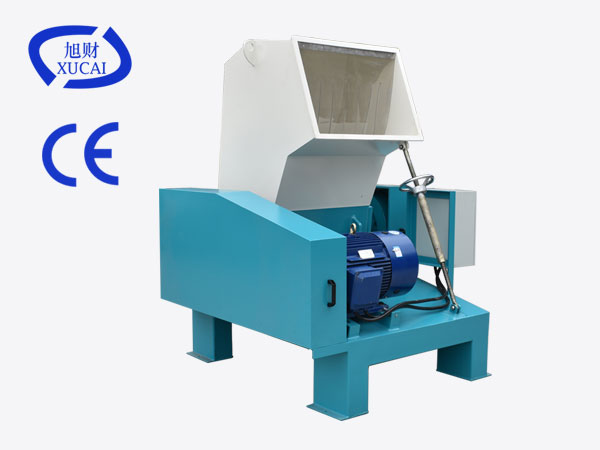

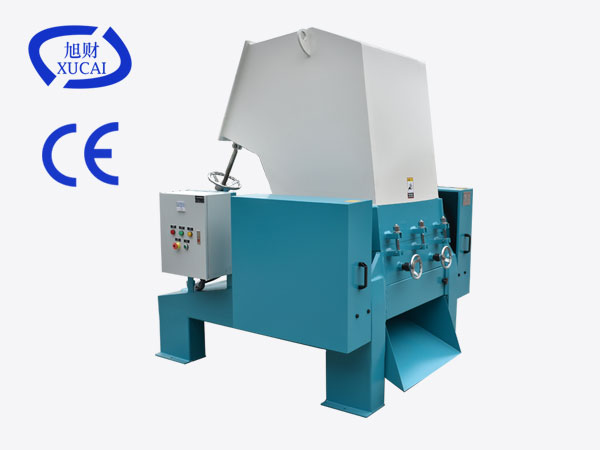

Plastic film shredder characteristics:

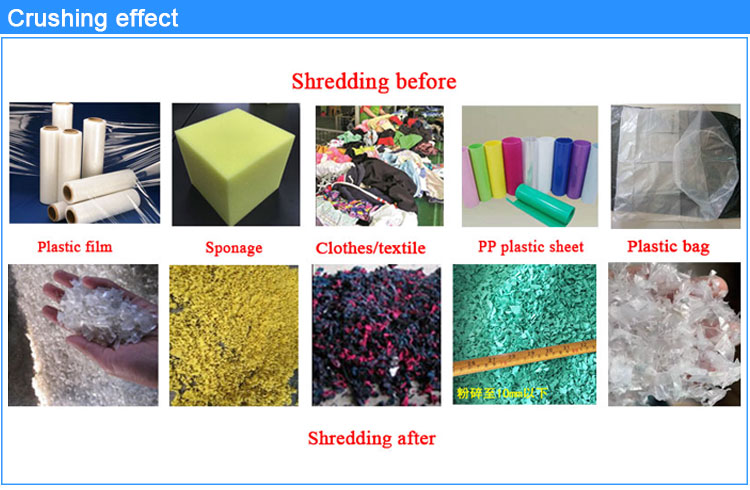

Film series shredder is suitable for recycle of film and thin materials.For example PP,PE pellicle plastics,knitted bags and fiber.

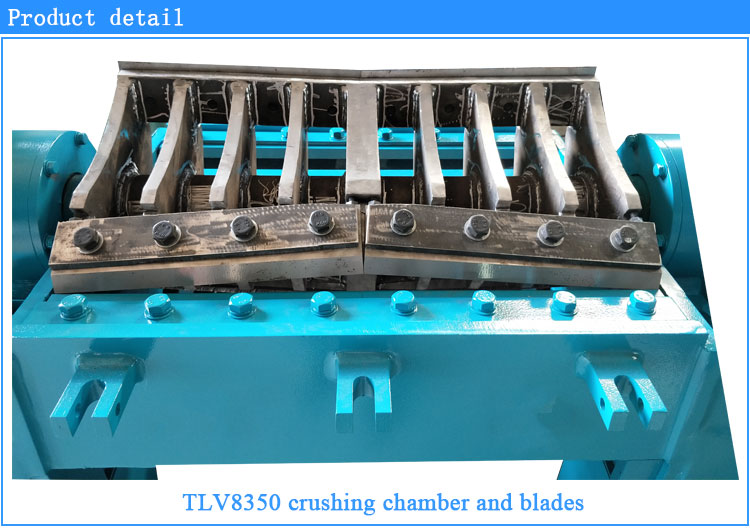

Uniquely designed with cross style cutter blade base purposely for granulating of pellicle plastics,increase work efficiency.Film granulator forms a plastic recycle system with centrifugal extractor and material storage tank to increase recycling efficiency.

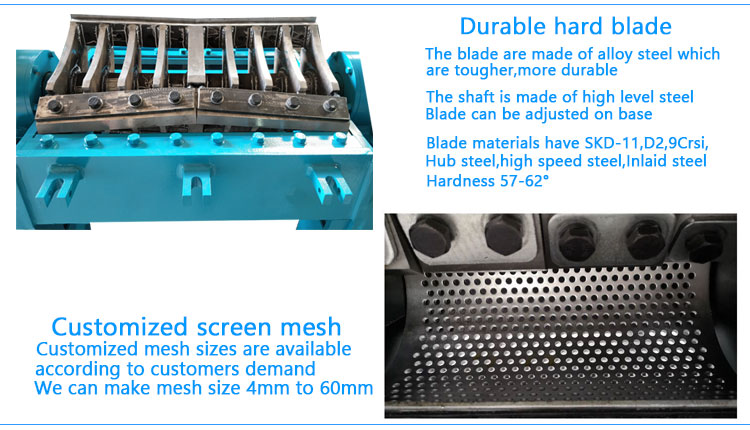

1.Blade design "V-type", blade can be customized according to clients' requirements.
2.Plastic scrap grinder manufacturers has a wide application and can be used for crushing and recycling various plastic films and sheets.
3.Easy to operate and convenient to change plastic scrap grinder blades.

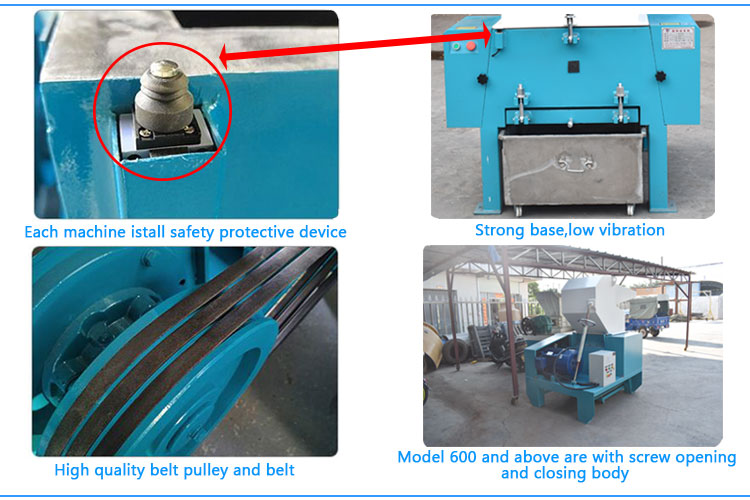

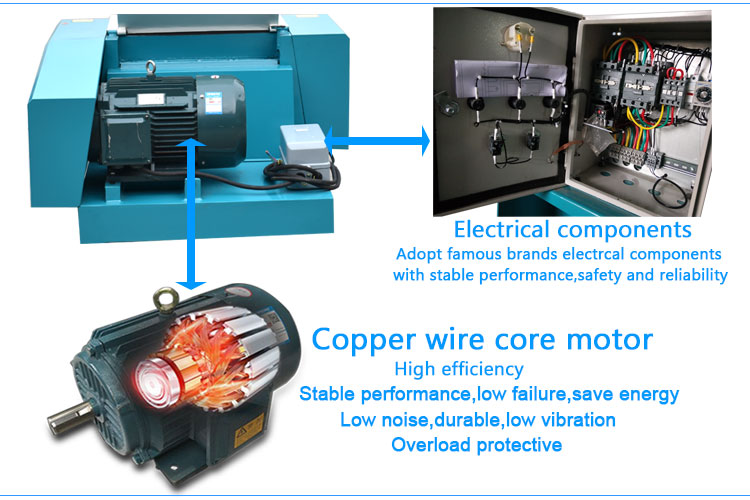

4.Motor have equipped with overloading protection device.
5.Mature manufacturing technique,main parts such as machine body and cutter frame adopt integrated
processing for assuring high precision.
- Product Detail
- Inquiry
Model |
Crushing chamber size(mm) |
Crushing Capacity (kg/h) |
Motor Power (kw) |
Fixing Cutter (pcs) |
Flexible Cutter (pcs) |
Mechanical Dimension(mm) |
Weight (kg) |
TLV4128 |
410x280 |
30-70 |
7.5 |
2 |
6 |
1080x860x1370 |
450 |
TLV5032 |
500x320 |
40-100 |
11 |
2 |
6 |
1200x990x1530 |
550 |
TLV6032 |
600x320 |
120-200 |
15 |
2 |
6 |
1100x1080x1435 |
620 |

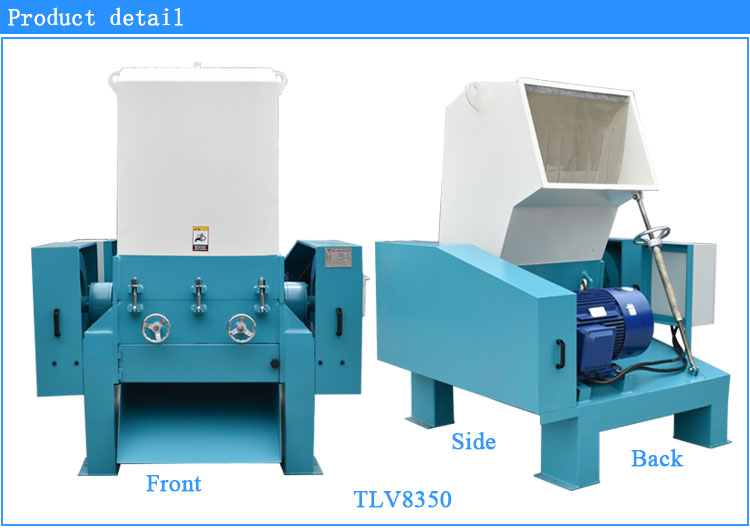

TLV8350 |
830x500 |
200-400 |
30 |
4 |
6 |
1560x1640x2160 |
1800 |
TLV1283 |
1220x830 |
300-1000 |
55/75 |
4 |
6 |
3000x2320x3250 |
5500 |
