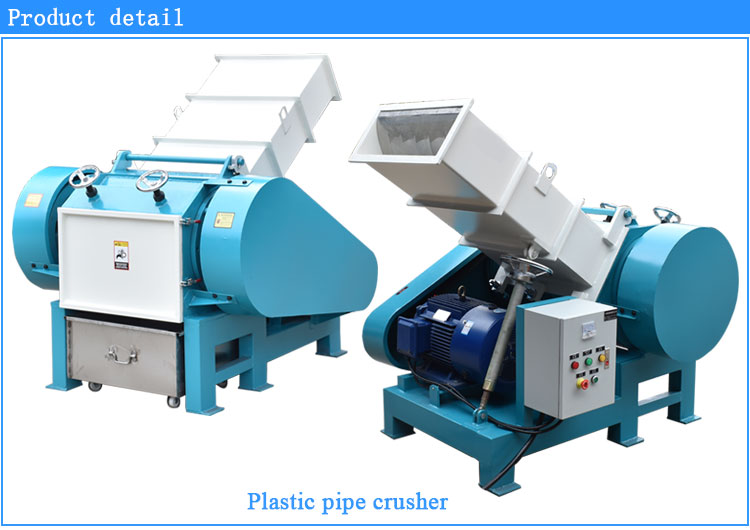

Plastic pipe shredder
Plastic pipe shredder characteristics：
1.TLG series plastic pipe shredder is applied to plastic sheet,plastic pipe,long plastic pipes,door frames,compression plastic sheet and othe long dimension plastic materials.Feeding gate angle is professional design,especially for convenient feeding the long dimension materials.Optional choose suction suction fan and storage tank,set up a whole recycling system,which forms a more efficient recycling system.
2.Mature manufacture techniques,integrating manufacture inbox body,knife shelves and other important parts to ensure a perfect match.
3.Good designing structure,convenient operation,energy-saving and durable,high efficient and economical.
4.Several security protection devices to ensure safe operation.
5.Input sieve with double-deck soundproof design to mitigate noise.
6.Machines in this series are stable,low noise,powder-pollution-free during the operation.The granules are evently produced and in good performance.No overheating during operation and long use life.

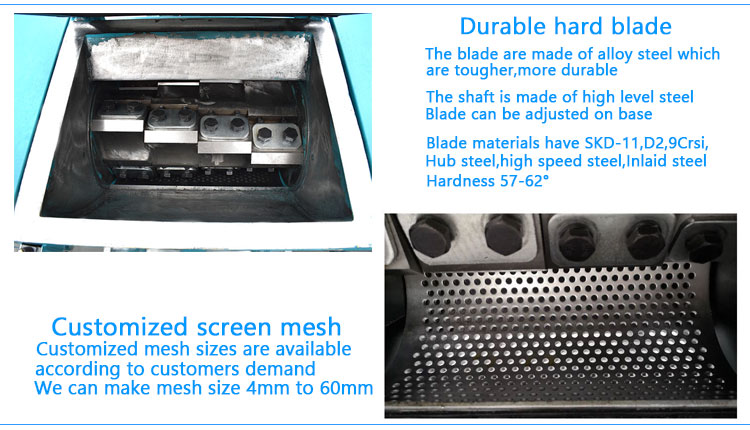

7.The plastic shredder adopt sealed bearings to ensure the long-term perfect operation of bearig.The cutter shape is reasonalbe to render the products into even granules.The cutter frame is processed via heat treatment and strong.
1.TLG series plastic pipe shredder is applied to plastic sheet,plastic pipe,long plastic pipes,door frames,compression plastic sheet and othe long dimension plastic materials.Feeding gate angle is professional design,especially for convenient feeding the long dimension materials.Optional choose suction suction fan and storage tank,set up a whole recycling system,which forms a more efficient recycling system.
2.Mature manufacture techniques,integrating manufacture inbox body,knife shelves and other important parts to ensure a perfect match.
3.Good designing structure,convenient operation,energy-saving and durable,high efficient and economical.
4.Several security protection devices to ensure safe operation.
5.Input sieve with double-deck soundproof design to mitigate noise.
6.Machines in this series are stable,low noise,powder-pollution-free during the operation.The granules are evently produced and in good performance.No overheating during operation and long use life.
7.The plastic shredder adopt sealed bearings to ensure the long-term perfect operation of bearig.The cutter shape is reasonalbe to render the products into even granules.The cutter frame is processed via heat treatment and strong.
- Product Detail
- Inquiry
Technical parameters:
|
Model |
Shredding chamber size(mm) |
Crushing Ability (kg/h) |
Motor Power (kw) |
Fixing Cutter (pcs) |
Flexible Cutter (pcs) |
Mechanical Dimension(mm) |
Weight (kg) |
|
TLG5060 |
500x600 |
400-800 |
37 |
2 |
15 |
2100x1260x2000 |
2200 |
|
TLG6060 |
600x600 |
500-1000 |
45 |
2 |
18 |
2250x1360x2100 |
2600 |
|
TLG6335 |
635x360 |
400-600 |
22 |
2 |
6 |
1880x1250x1600 |
1800 |
|
TLG7046 |
700x460 |
500-700 |
30 |
2 |
6 |
1680x1300x1700 |
2000 |
|
TLG8146 |
810x460 |
550-800 |
30 |
4 |
6 |
2100x1485x1700 |
2600 |
|
TLG8160 |
810x600 |
600-900 |
37 |
4 |
6 |
2100x1550x1800 |
2800 |
|
TLG1065 |
1020x650 |
750-1000 |
45 |
4 |
6 |
2250x1780x1800 |
3000 |
|
TLG1280 |
1220x800 |
900-1500 |
55 |
6 |
6/12 |
2500x2100x1800 |
4500 |
