Features:

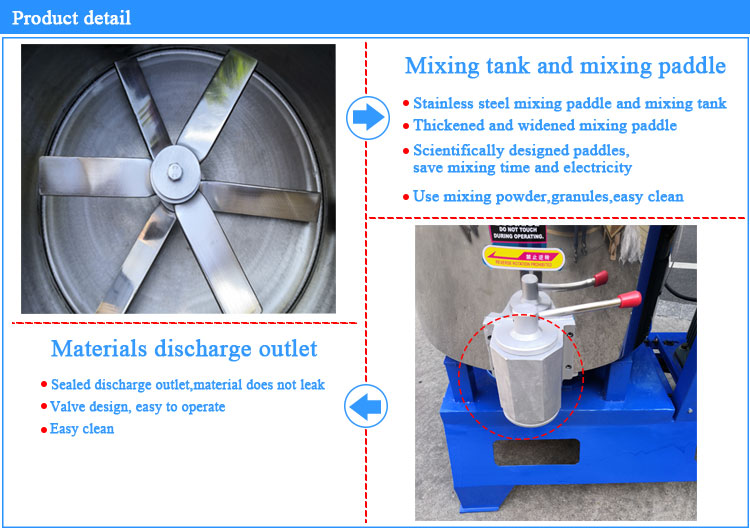

Working principle: plastic drying blending machine, is the use of whipping blades vortex-type high-speed operation, so that plastic particles (or resin powder) to adjust the rolling collision friction heat, so that the material in the mixing of water from the exhaust pipe at the same time to quickly evaporate Dry purpose, the effect is ideal.

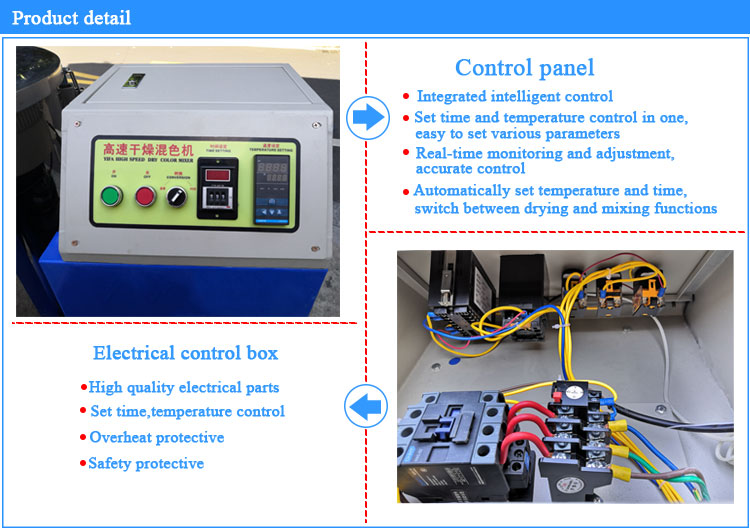

1.set the temperature, time control in one, to facilitate the setting of various parameters
2.Reasonable structure, easy to operate

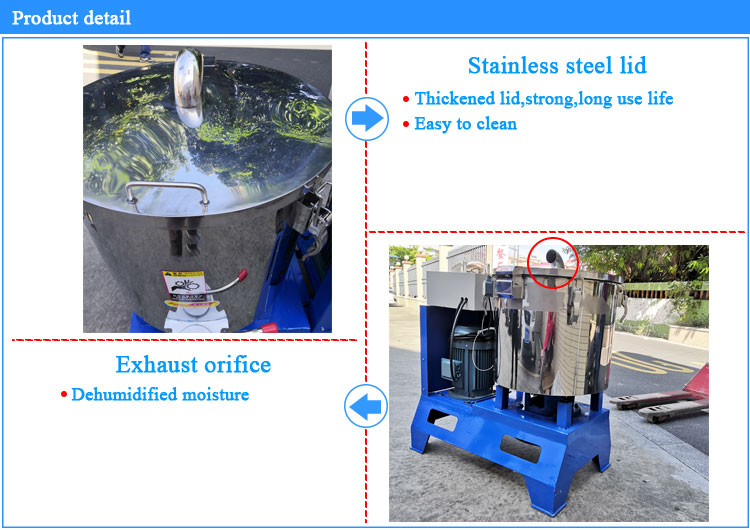

3.Stainless steel liner, shell, easy to clean
4.Double insulation device
5.Sealed chamber mixing, can be magnetized impurities separation (optional)
6.Overload protection
- Product Detail
- Inquiry
Model |
Motor Power(kw) |
Mixing Capacity (kg) |
Rotation speed(r/min) |
Mechanical Dimension(mm) |
Weight(kg) |
TDM-25 |
5.5 |
25 |
480 |
1000x700x1250 |
200 |
TDM-50 |
7.5 |
50 |
480 |
1180x850x1350 |
230 |
TDM-100 |
15 |
100 |
480 |
1350x1000x1530 |
270 |
TDM-200 |
30 |
200 |
480 |
1700x1300x1700 |
700 |
